- Models
|

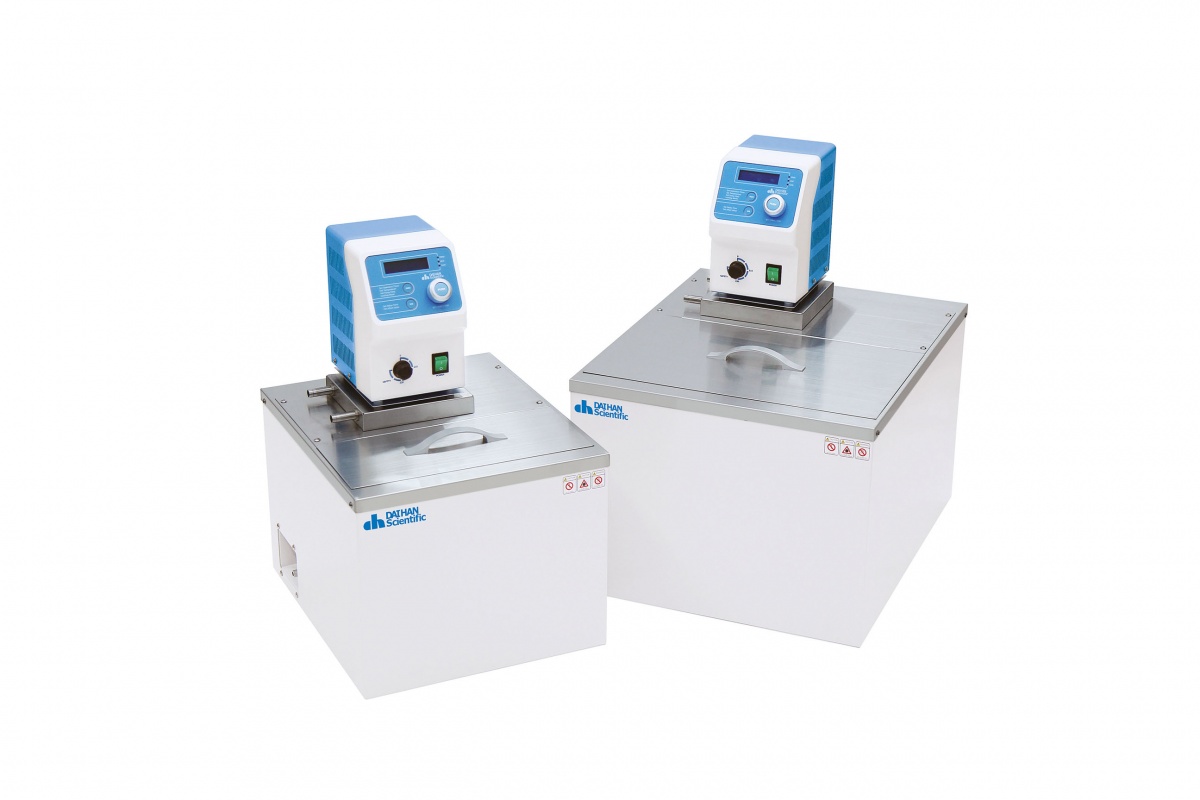

MaXircu CH-8
|
MaXircu CH-12
|
MaXircu CH-22
|
MaXircu CH-30
|
|
Bath Volume
|
8 Lit.
|
12 Lit.
|
22 Lit.
|
30 Lit.
|
|
Pump
|
Max Flow Rate : 16 Lit./min, (Available to Control 1~5Level Flow Rate), Max Pressure : 5 psi, Max Lift : 2.8m
|
|
Temp. Range & Accuracy
|
Room Temp＋5℃~ 250℃, ±0.1℃
|
|
Temp. Resolution
|
0.1℃-Display, 0.5℃-Control
|
- Uniformity & Probe
|
±0.2℃, PT100
|
|
Heating Power
|
1.0 kW
|
1.5 kW
|
2.2 kW
|
2.5 kW
|
|
Heat-up Time
|
50 min. to 100℃
|
|
External Circulation Nozzle
|
id.10.5 / od.12.5 mm
|
|
Timer & Alarm
|
99hr 59min (Delay & Continuous run), Error status & Timer-end
|
|
Display
|
Digital LCD with Back- Light Function
|
|
Controller
|
Digital Fuzzy Controller with Jog - Dial Knob (Turn＋Push)
|
|
Safety Circuit
|
Over-Temp./-Current protection, Sensor Error & Low Level Detection
|
|
Material
|
Stainless steel (＃304)-Internal, Powder Coated steel-External, 50mm Thickness Ceramic Fiber-Insulation
|
|
Lid
|
included Stainless-steel Flat Lid(with Insulation), Optional Dome Lid,
|
|
Drain Valve
|
Ball Valve
|
|
Dimension (w×d×h)
|
Effective Space
|
180×130×h155
|
250×130×h155
|
340×250×h155
|
340×250×h200
|
|
Internal (mm)
|
180×320×h155
|
250×320×h155
|
340×440×h155
|
340×440×h200
|
|
External (mm)
|
303×443×h569
|
373×443×h569
|
463×563×h569
|
463×563×h614
|
|
Packing Size (mm)
& Gross Weight (kg)
|
470×400×h500
19 kg
|
470×400×h500
21 kg
|
600×490×h500
23 kg
|
600×490×h500
37 kg
|
|
Electrical Reqts.
|
1 Phase, AC 120V, 60Hz or AC 230V, 50 / 60Hz
|
|
Cat. No.
|
230V
|
DH.WCH00408
|
DH.WCH00412
|
DH.WCH00422
|
DH.WCH00430
|
|
120V
|
DH.WCH00508
|
DH.WCH00512
|
DH.WCH00522
|
DH.WCH00530
|
|
|
|
|
|
|
