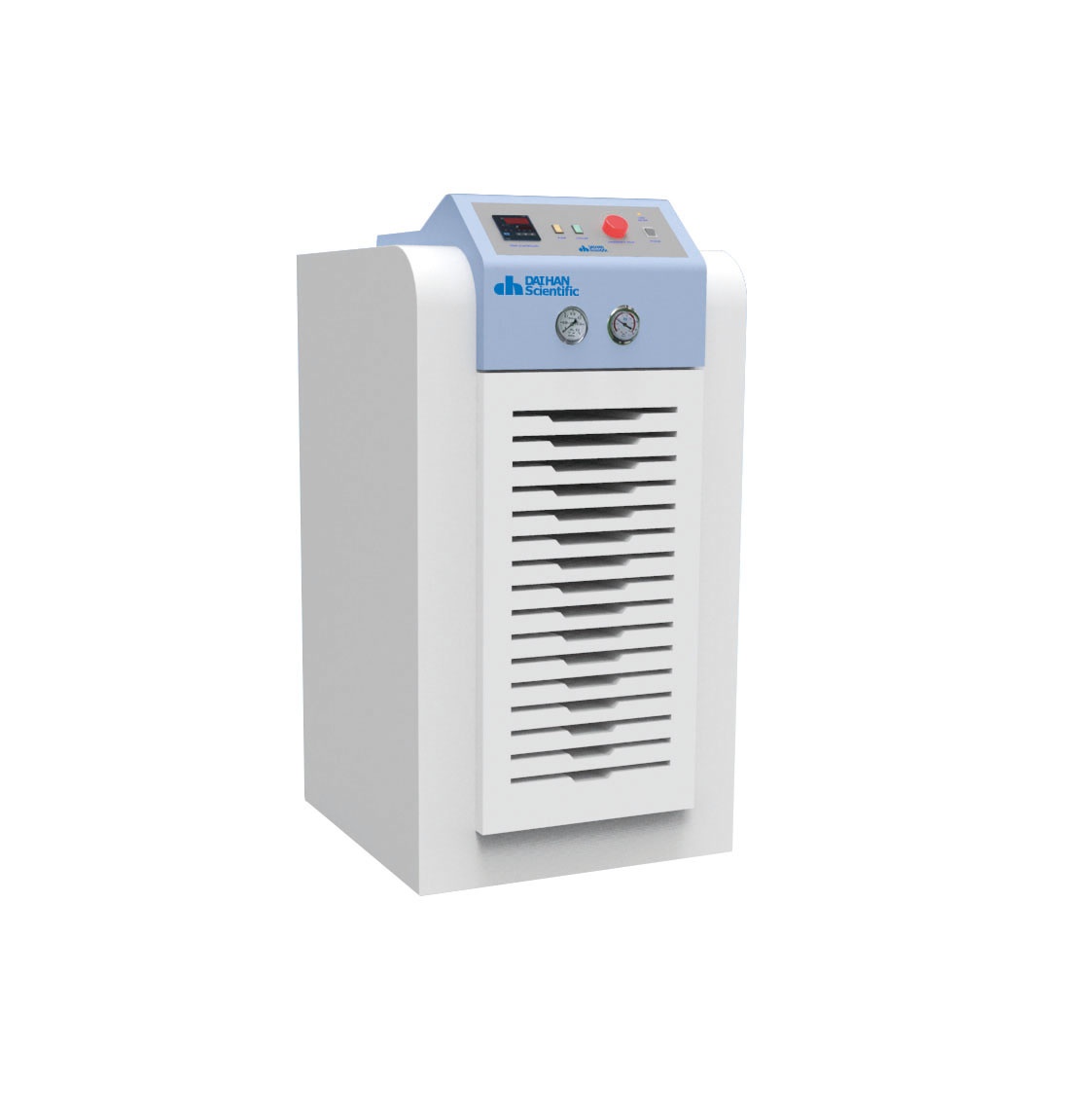

- Model
|
“MaXircuTM Chi-20”
|
“MaXircuTM Chi-30”
|
“MaXircuTM Chi-50”
|
|
Temp. Range & Stability
|
－20℃ ~ +40℃-Range, ±0.2℃(at 15℃)-Stability
|
|
Cool-Fluid. Filling Volume
|
17 Lit. max
|
29 Lit. max
|
47 Lit. max
|
|
Useful for 1~50Lit Evaporators, etc.
|
for 1~20Lit Evaporator
|
for 10~30Lit Evaporator
|
for 20~50Lit Evaporator
|
|
Refrigerator Capacity(HP)
|
1/2 HP
|
1 HP
|
2 HP
|
|
Lid & Top Opening Dia.
|
Φ100 mm
|
|
Fluid In/Out-let Connector
|
ISO RC 1/2" (English System AG 1/2") Thread, Stainless-steel
|
|
Pump Power, Lift Height, m
|
Max. Flow Rate
|
20 Lit/min
|
30 Lit/min
|
|
Max. Pressure & Lift
|
1.0 bar Max. Lift : 8m
|
3.3 bar Max. Lift : 27m
|
|
Cooling Capacity
|
at +20℃
|
1.7 kW
|
2.8 kW
|
6.5 kW
|
|
at 0℃
|
0.87 kW
|
1.3 kW
|
3.0 kW
|
|
at －20℃
|
0.32 kW
|
0.45 kW
|
1.2 kW
|
|
External Dimension
|
450×630×h650 mm
|
550×830×h975 mm
|
605×975×h1265 mm
|
|
Material
|
Stainless steel-Internal, Powder Coated steel-External
|
|
Electrical Reqts.
|
1 Phase 230V, 50 / 60 Hz or 3Phase 380V
|
|
Cat. No.
|
230V
|
DH.Chi0020
|
DH.Chi0030
|
-
|
|
3 Phase
|
-
|
-
|
DH.Chi0050
|
|
|
|
|
|
