Model
|

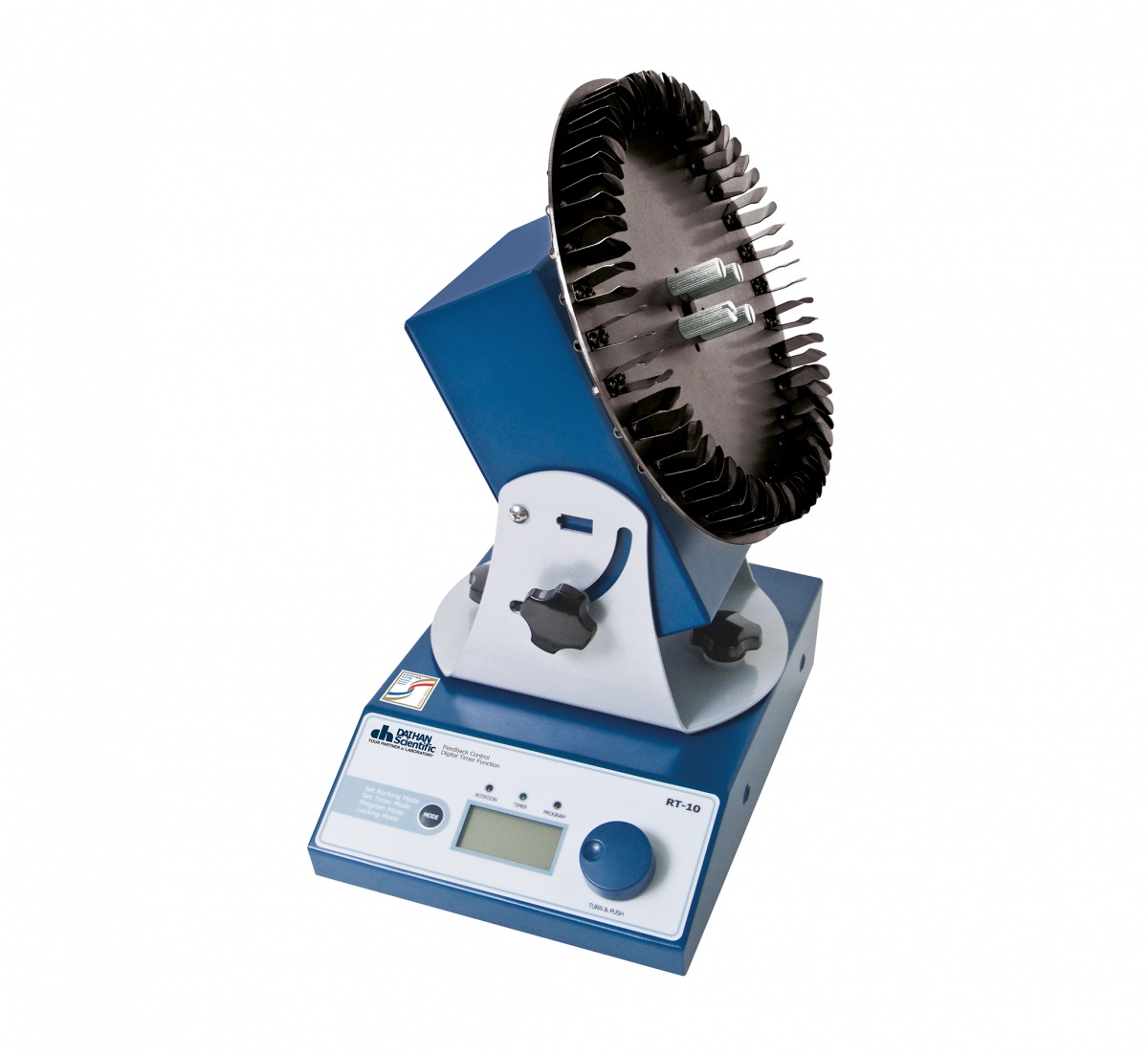

“RT-10”
|
|
Speed range
|
5 ~ 60 rpm
|
|
Angle range
|
0�~ 90�
|
|
Motor
|
35W
|
|
Program Function
|
10 Steps, 6 Programs
|
|
Timer & Alarm
|
99hr 59min (with Continuous run.), Error status & Timer-end
|
|
Display
|
Digital LCD with Back-Light Function
|
|
Controller
|
Programmable Digital Feedback Controller with Jog-Shuttle
|
|
Temp. Resistance
|
Lower than 65℃ (Dry Air)
|
|
Safety Circuit
|
Overload Protector for motor
|
|
Dimensions (w×d×h) (mm)
|
200×250×h260 mm
|
|
Weight
|
6 kg
|
|
Others
|
CE Certified, PL(Product Liability) Insurance Storage Function (RPM, Timer)
Locking Mode (Jog-Shuttle Input Disabled) User Self-compensation Function, Alarm (Error Status and Timer-end)
|
|
Packing Size (w×d×h) (mm) & Gross Weight
|
370×240×h430 mm
|
|
8.5 kg
|
|
Power Consumption
|
40 W
|
|
Power Supply & Cord Plug�
|
1 Phase, AC 120V, 60Hz or AC 230V, 50 / 60Hz
|
