Model
|
Platform Size : 290×200 mm

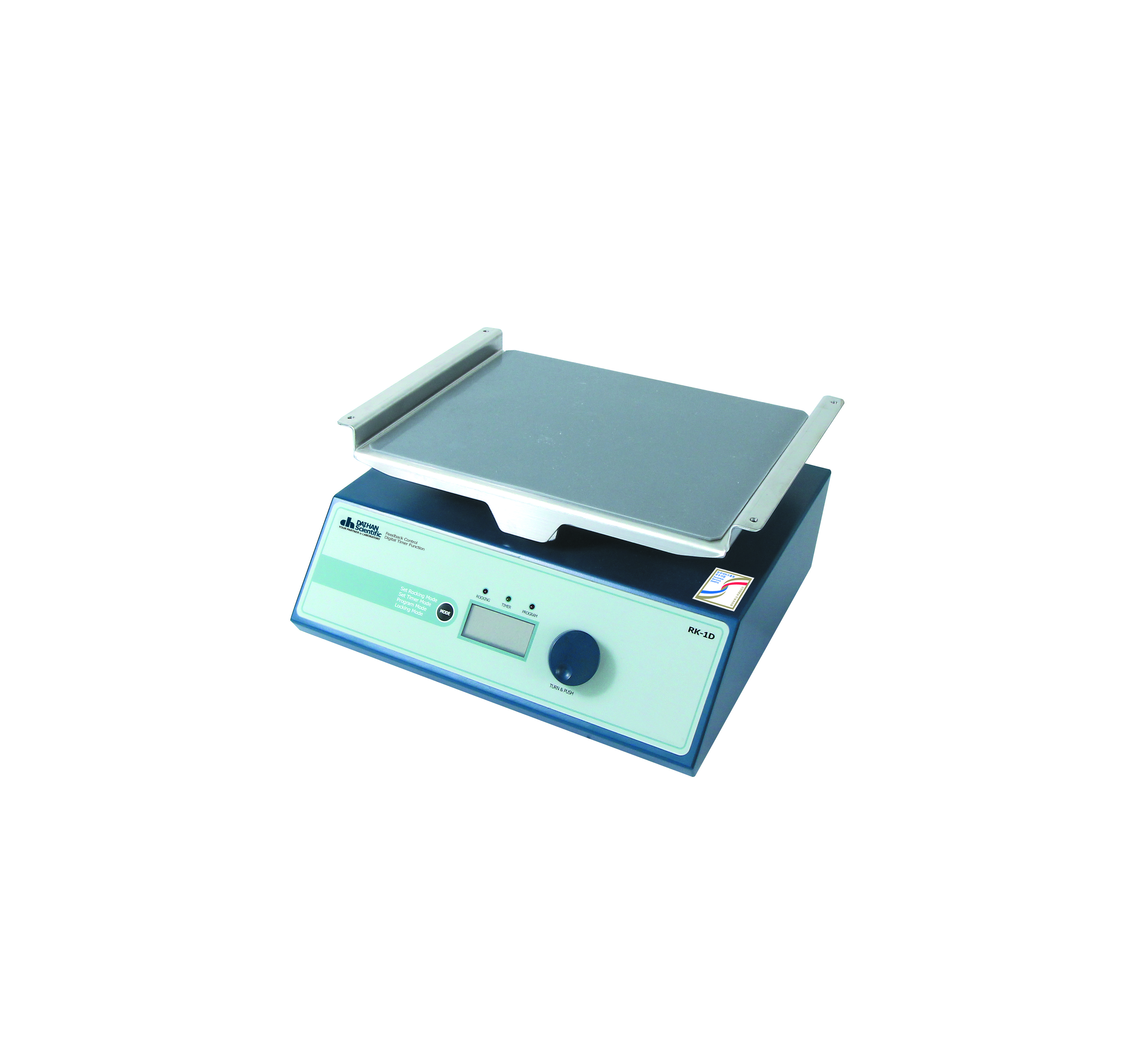

“RK-1D”
|
Platform Size : 300×300 mm
“RK-2D”
|
|
Platform (mm)
|
290×200
|
300×300
|
|
|
Overall (mm)
|
290×240×150
|
300×330×150
|
|
|
Speed Range (rpm)
|
5 ~ 50
|
|
Angle (degree)
|
±6 or ±9 (±9 as Factory Default)
|
|
Motor
|
35W Geared DC Motor
|
|
Program Function
|
10 Steps, 6 Programs
|
|
Timer & Alarm
|
99hr 59min (with Continuous run.), Error status & Timer-end
|
|
Display
|
Digital LCD with Back-Light Function
|
|
Controller
|
Programmable Digital Feedback Controller with Jog-Shuttle Switch(Turn+Push)
|
|
Safety Circuit
|
Overload Protector for motor
|
|
Platform
|
Included Platform(290×200mm)
|
Included Platform(300×300mm)
|
|
Others
|
CE Certified, PL(Product Liability) Insurance
Smooth Start and Change of the Stirring Speed for Stable Running
Storage Function (RPM, Timer) Locking Mode (Jog-Shuttle Input Disabled)
Alarm ( Error Status and Timer-end )
|
|
Packing Dimension (w×d×h) (mm)
|
450×350×250
|
|
Gross Weight
|
7 kg
|
8 kg
|
|
Power Consumption
|
35 W
|
|
Power Supply & Cord Plug�
|
Free Voltage (1 Phase, AC 80V~240V, 50/60Hz)
|
