- Model
|

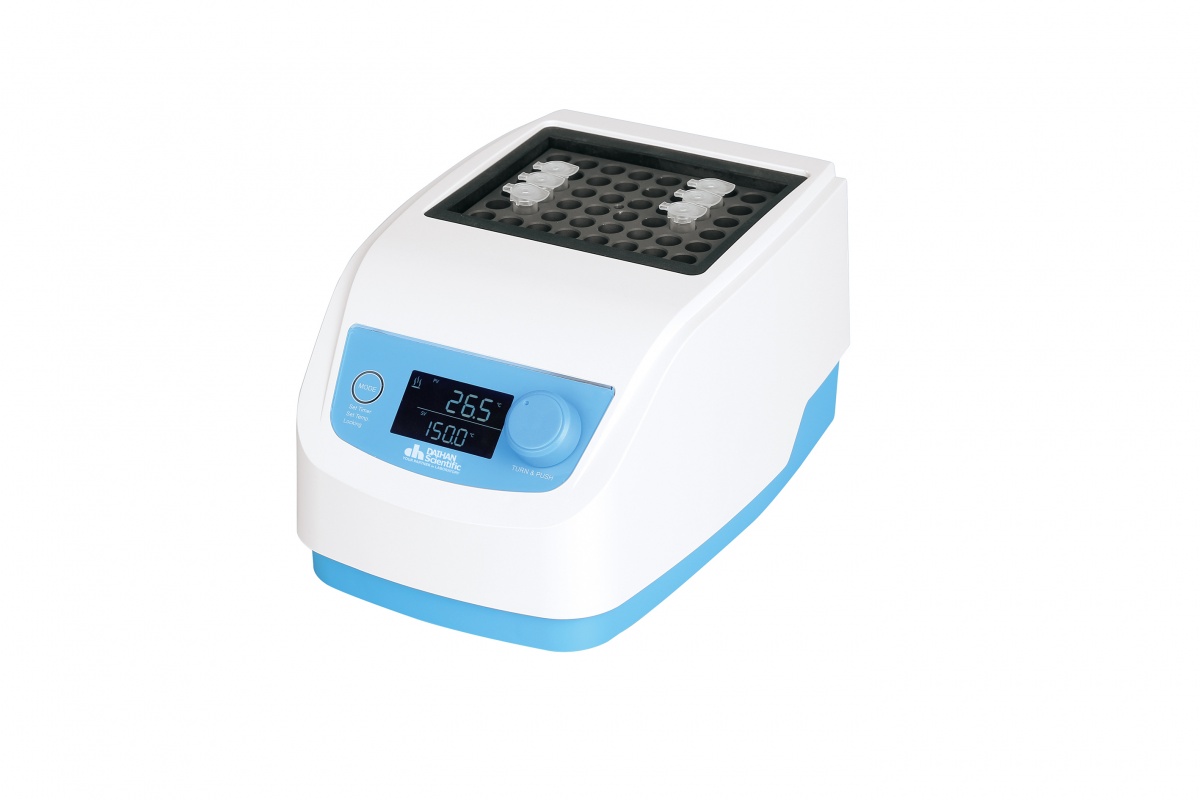

“MaXtableTM H20” (Only Unit)
|
“MaXtableTM H20-set” (included Standard Block)
|
|
Controller
|
Single Digital Fuzzy Controller
|
|
Useful Block
|
Interchangeable Block(90×120×h60mm) for Various Tubes
|
|
included Standard Block
|
None(Only Heating Block Unit)
|
48 holes×for 1.5/ 2ml Centri. Tube
|
|
Heater
|
Molded Heater(300W)
|
|
Dimension(mm) & Weight(kg)
|
Unit : 178×226×h138, Block : 90×120×h60
|
|
Temp. Range, & Accuracy
|
Ambient ＋5℃ to 150℃, ±0.1℃ at 37℃, ±0.2℃ at 90℃, ±0.4℃ at 135℃
|
|
Heat-Up Speed & Sensor
|
Approx. 5℃/min, PT100
|
|
Safety Circuit
|
Over Temp. and Over Current Protector, Sensor Error Detector
|
|
Timer with Alarm
|
99hr 59min, Alarm (Error Status and Timer - end)
|
|
Display
|
Digital LCD with Back-Light Function
|
|
Material
|
Unit : PPS & BAS(HF380), Block : Anodized Aluminum
|
|
Included Standard Acce.
|
Block Tongs “BLE101” and Block Cover
|
|
Packing Size & Gross Weight
|
230×290×h245 mm, 2.2 kg
|
230×355×h245 mm, 3.5 kg
|
|
Power Consumption
|
300 W
|
|
Electric Reqts.
|
1 Phase, AC 120V, 60Hz or AC 230V, 50 / 60Hz
|
|
Cat. No.
|
230V
|
DH.WHB02000
|
DH.WHB02100
|
|
120V
|
DH.WHB02001
|
DH.WHB02101
|
|
Price, Each. ￦
|
303,000
|
459,000
|
