Models
|

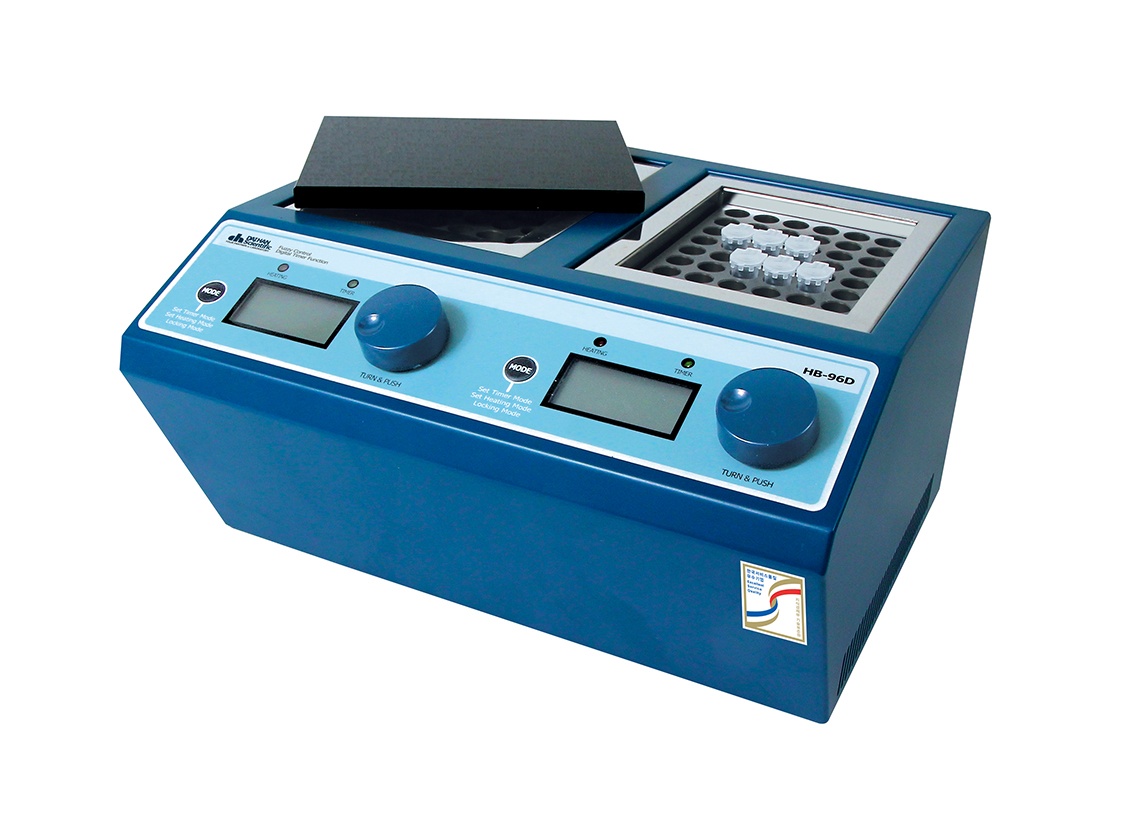

“HB-96D”
|
|
Controller
|
Dual Digital Fuzzy Controller
|
|
Capacity (1.5 / 2ml Tube)
|
2×(48 Holes×1.5/2ml Tube)
|
|
Heater
|
300W (Molded Heater)
|
|
Dimension
|
Block (mm)
|
(90×120×h60)×2ea
|
|
Unit (mm)
|
285×250×h155
|
- Range, & Accuracy
|
Ambient ＋5℃ to 150℃, ±0.1℃ at 37℃, ±0.2℃ at 90℃, ±0.4℃ at 135℃
|
|
Heat-Up Speed & Sensor
|
Approx. 5℃/min, PT100
|
|
Safety Circuit
|
Over Temp. and Over Current Protector, Sensor Error Detector
|
|
Timer with Alarm
|
99hr 59min, Alarm (Error Status and Timer - end)
|
|
Display
|
Digital LCD with Back-Light Function
|
|
Material
|
Internal & External
|
Stainless steel (＃304), and Powder Coated steel
|
|
Block
|
Anodized Aluminum
|
|
Included Standard Acce.
|
2×Block “BLC548” for 1.5/2ml Tubes, and Block Tongs “BLE101”
|
|
Packing Size
|
400×270×h200 mm
|
|
Gross Weight
|
6 kg
|
|
Power Consumption
|
600 W
|
|
Power Supply & Cord Plug�
|
1 Phase, AC 120V, 60Hz or AC 230V, 50 / 60Hz
|
