- Model
|

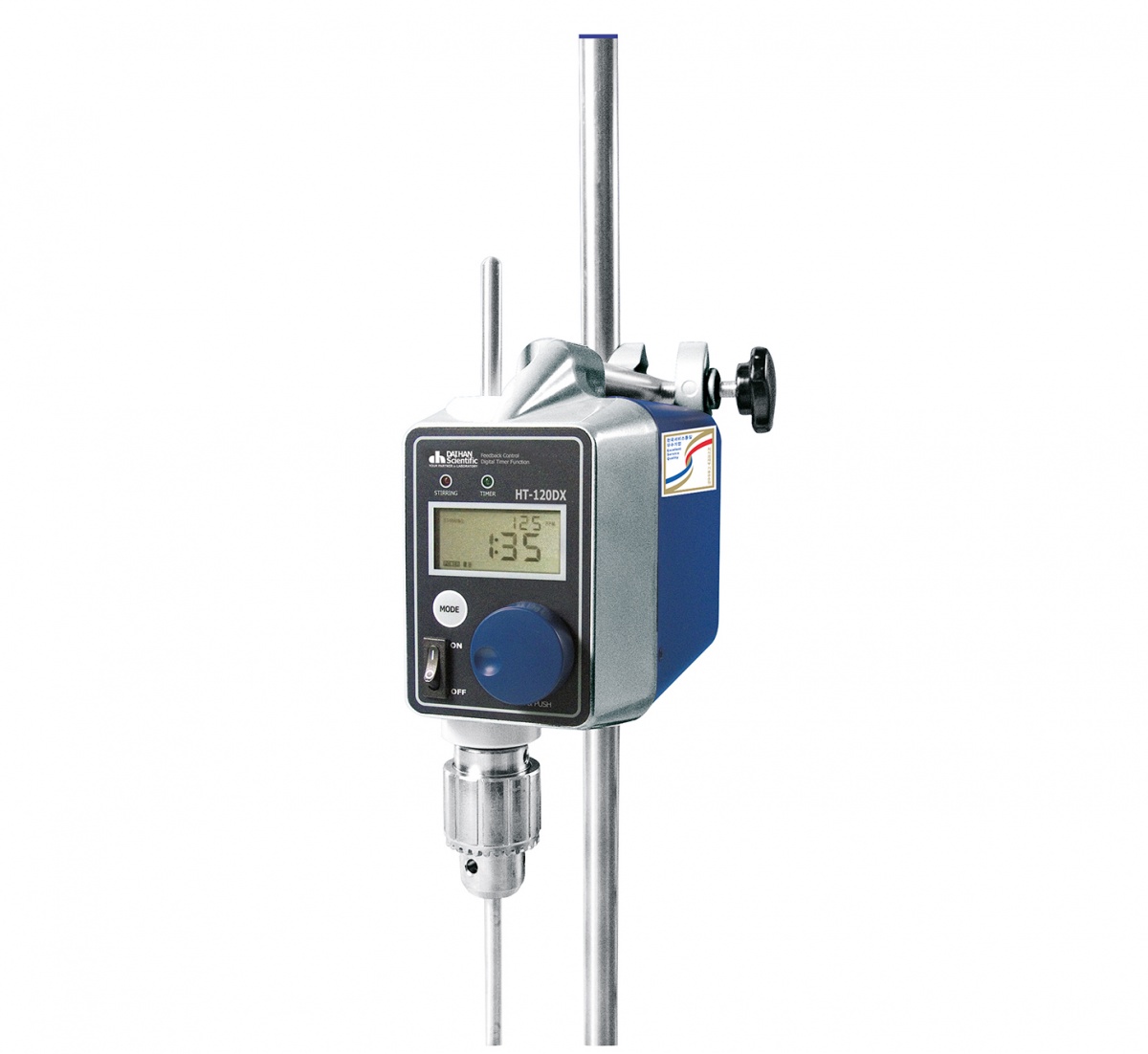

(1) “HT-50DX”
|
(2) “HT-120DX”
|
|
Stirring Capacity
|
Max. 50 Lit. (H2O)
|
Max. 80 Lit. (H2O)
|
|
Maximum Viscosity / Torque
|
100,000 mPas / 300 Ncm
|
150,000 mPas / 500 Ncm
|
|
Speed Range & Resolution
|
50 ~ 1,000 rpm, 1 rpm-Display / 1 rpm-Control
|
|
Motor
|
Worm-Geared DC Motor (3.5:1 Ratio)
|
|
Motor Rating (Input / Output)
|
83 / 75 W, 1 / 10 HP
|
130 / 120 W, 1 / 6 HP
|
|
Timer & Alarm
|
99hr 59min (with Continuous run.), Error status & Timer-end
|
|
Controller / Display
|
Digital Feedback Controller / Digital LCD with Back-Light Function
|
|
Chuck Grip Capa. Φmm
|
dia Φ6~12mm Shafts
|
|
“Push-Through” Shafts
|
dia Φ10mm or Less
|
|
Permissible Temp. & Humidity
|
0 ~ 40℃, 80%
|
|
Safety Device / Material
|
Overload & Heat Protector for Motor / ABS and Aluminum
|
|
Dimension & Weight
|
90×180×h130mm, 3.5 kg
|
90×210×h130mm, 4 kg
|
|
Packing Size & Gross Weight
|
320×300×h180mm, 5 kg
|
320×300×h180mm, 8 kg
|
|
Power Consumption
|
85 W
|
130 W
|
|
Electrical Reqts.
|
1 Phase, AC 120 V, 60 Hz or AC 230 V, 50 / 60 Hz
|
|
Stand Package-set
|
|
Cat. No.
|
230V
|
DH.WOS01052
|
DH.WOS01072
|
|
120V
|
DH.WOS02052
|
DH.WOS02072
|
|
Price, Each. ￦
|
520,000
|
635,000
|
|
Unit-only
|
|
Cat. No.
|
230V
|
DH.WOS01051
|
DH.WOS01071
|
|
120V
|
DH.WOS02051
|
DH.WOS02071
|
|
Price, Each. ￦
|
400,000
|
470,000
|
