- Models
|

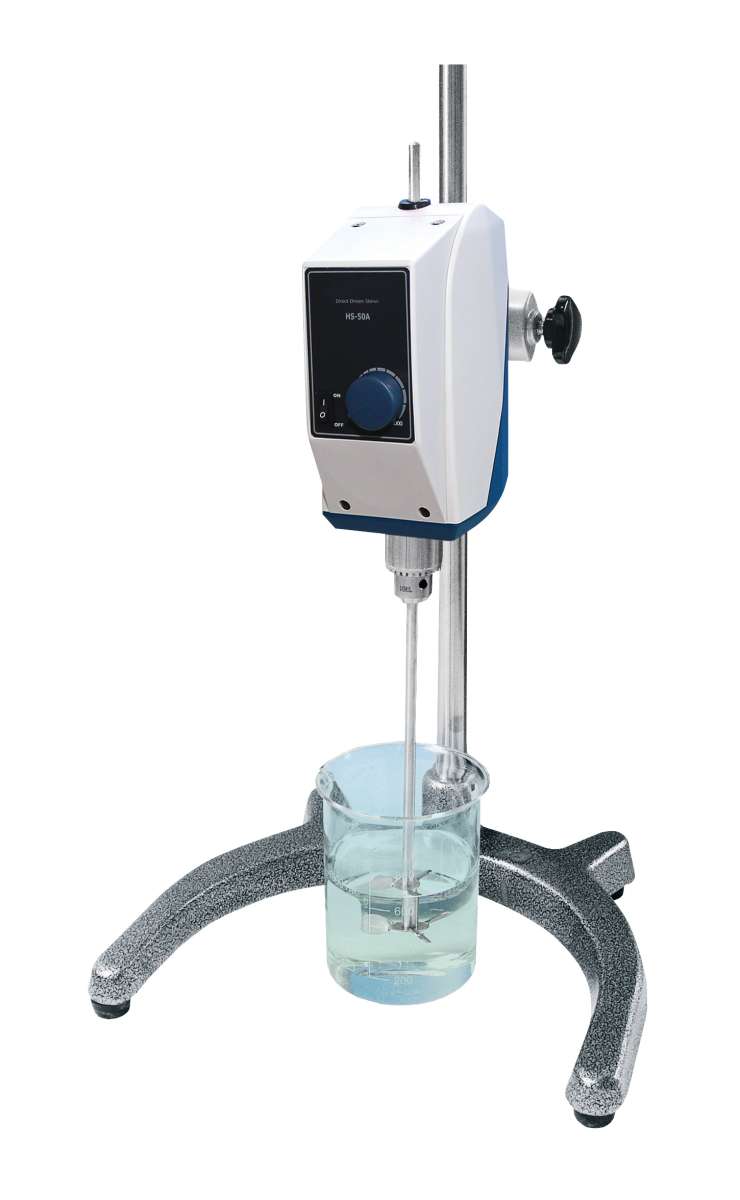

(1) “HS-50A”
|
(2) “HS-120A”
|
|
Stirring Capacity
|
Max. 10 Lit. (H2O)
|
Max. 20 Lit. (H2O)
|
|
Maximum Viscosity / Torque
|
10,000 mPas / 85 Ncm
|
50,000 mPas / 145 Ncm
|
|
Speed Range & Motor
|
0 ~ 3,000 rpm, Direct Driven DC Motor
|
|
Motor Rating (Input / Output)
|
83 / 75 W, 1 / 10 HP
|
130 / 120 W, 1 / 6 HP
|
|
Controller / Safety Device
|
Analog Phase Controller / Over Heat Protector for motor
|
|
Chuck Grip Capa. Φmm
|
dia Φ3~10mm Shafts
|
|
“Push-Through” Shafts
|
dia Φ8mm or Less
|
|
Permissible Temp. & Humidity
|
0 ~ 40℃, 80%
|
|
Material
|
ABS and Aluminum
|
|
Dimension & Weight
|
90×145×h180mm, 4.5 kg
|
90×145×h180mm, 5.3 kg
|
|
Packing Size & Gross Weight
|
320×300×h180mm, 5 kg
|
320×300×h180mm, 8 kg
|
|
Power Consumption
|
85 W
|
130 W
|
|
Electrical Reqts.
|
1 Phase, AC 120 V, 60 Hz or AC 230 V, 50 / 60 Hz
|
|
Stand Package-set
|
|
Cat. No.
|
230V
|
DH.WOS01211
|
DH.WOS01216
|
|
120V
|
DH.WOS02211
|
DH.WOS02216
|
|
Price, Each. ￦
|
394,000
|
400,000
|
|
Unit-only
|
|
Cat. No.
|
230V
|
DH.WOS01210
|
DH.WOS01215
|
|
120V
|
DH.WOS02210
|
DH.WOS02215
|
|
Price, Each. ￦
|
297,000
|
326,000
|
