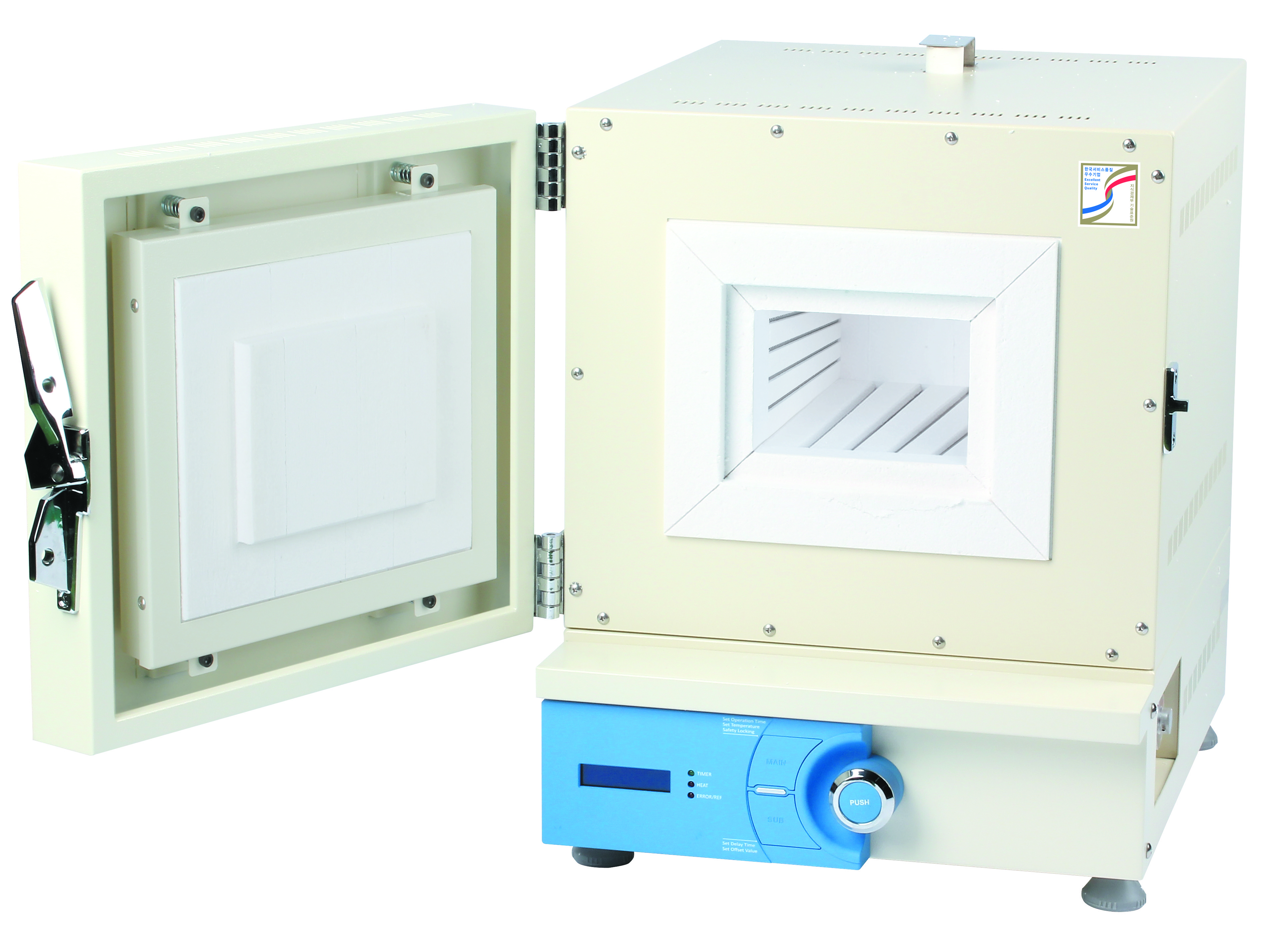

- Model
|
“FHX-03”
|
“FHX-05”
|
“FHX-12”
|
“FHX-14”
|
“FHX-27”
|
“FHX-63”
|
|
Temp. Range
|
300℃ ~ 1200℃
|
|
Capacity
|
3 Lit.
|
4.5 Lit.
|
12 Lit.
|
14 Lit.
|
27 Lit.
|
63 Lit.
|
|
Heater
|
Kanthal A1, Expose Wire Heating Elements, 4-Side Heating
|
|
Thermocouple
|
K-type Thermocouple
|
|
Heating Power
|
1.6 kW
|
1.7 kW
|
3.3 kW
|
4.0 kW
|
4.6 kW
|
9 kW
|
|
Required time to be reached 800℃
|
16 min
|
20 min
|
23 min
|
|
Timer & Alarm
|
99hr 59min (Continuous run), Error status & Timer-end
|
|
Display
|
Digital LCD with Back-Light Function
|
|
Controller
|
Digital PID Controller with Jog-Dial Switch (Turn+Push)
|
|
Program Function
|
4 Patterns with 10 Segments
|
|
Safety Circuit
|
Over-Temp./-Current protection, Sensor Error Detection Safety Switch for Door Opening
|
|
Material
|
Ceramic Fiber with Heating Wire-Internal, Powder Coated steel-External Ceramic Fiber-Insulation
|
|
Dimension (w×d×h)
|
Internal (cm)
|
13×25×9
|
15×30×10
|
20×30×20
|
25×35×16
|
30×30×30
|
40×40×40
|
|
External (cm)
|
41×48×53
|
44×53×55
|
50×55×66
|
55×59×62
|
60×59×76
|
100×75×95
|
|
Packing Size(w×d×h) (cm)
|
63×54×77
|
68×57×78
|
70×63×89
|
74×68×85
|
74×73×99
|
116×90×110
|
|
Gross Weight
|
47 kg
|
54 kg
|
59 kg
|
73 kg
|
83 kg
|
225 kg
|
|
Electrical Reqts.
|
1 Phase, AC 120V, 60Hz or AC 230V, 50/60Hz
|
1 Phase AC 120V, 60Hz or AC 230V, 50/60Hz
or 3 Phase
|
|
Cat. No.
|
230V
|
DH.WFH22.03
|
DH.WFH22.05
|
DH.WFH22.12
|
DH.WFH22.14
|
DH.WFH22.27
|
DH.WFH22.63
|
|
120V
|
DH.WFH20.03
|
DH.WFH20.05
|
DH.WFH20.12
|
DH.WFH20.14
|
DH.WFH20.27
|
DH.WFH20.63
|
|
3Phase
|
-
|
-
|
DH.WFH23.12
|
DH.WFH23.14
|
DH.WFH23.27
|
DH.WFH23.63
|
|
Price, Each. ￦
|
1,691,000
|
1,950,000
|
2,733,000
|
2,820,000
|
4,405,000
|
7,121,000
|
