Model
|

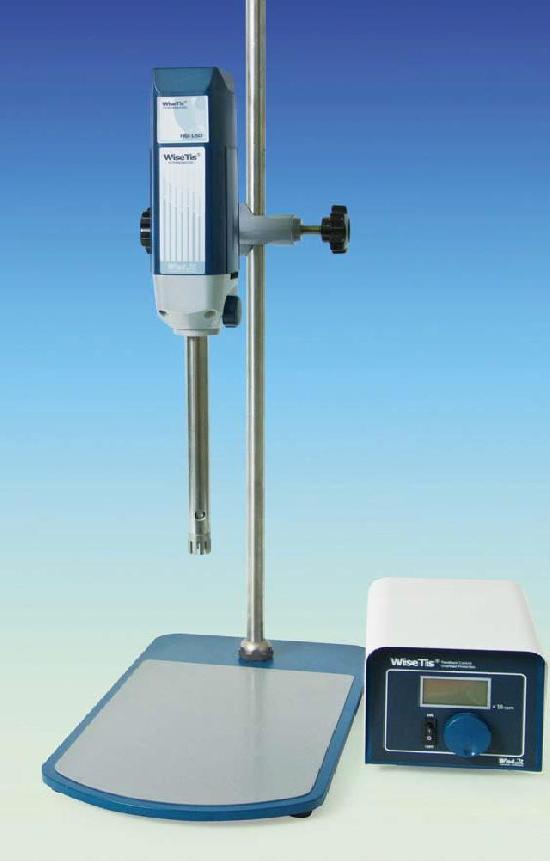

Homogenizer Package-Set “HG - 15D-Set”
|
|
Speed Range & Resolution
|
2,000 ~ 27,000rpm (without load), 10 rpm-Control
|
|
Working Range
|
1 ~ 2,500ml
|
|
Motor Rating (Input / Output)
|
Input : 300W , Output : 160 W
|
|
Timer & Alarm
|
10sec ~ 15min, Timer-end Alarm
|
|
Display
|
Digital LCD with Back-Light Function
|
|
Controller
|
Digital Feedback Controller (Remote Type)
|
|
Safety Device
|
Over Load & Over Heat Protector
|
|
Usable Dispersing Tool
|
Φ8mm Stator “HT1008”, Φ10mm Stator “HT1010”,
Φ18mm Stator “HT1018”, Φ25mm Stator “HT1025”
|
|
Material
|
Aluminum Die-casting and ABS-Unit, Stainless steel (＃304)-Tool
|
|
Permissible Temp. & Moisture
|
Ambient +5 ~ 50℃, 85%
|
|
Extension Arm Size
|
Φ12.7×L250mm
|
|
Dimension & Weight
|
60×75×h215mm, 2.5kg
|
|
Packing Size & Gross Weight
|
580×340×h230mm, 6 kg
|
|
Power Consumption
|
160W
|
|
Power Supply & Cord Plug�
|
1 Phase, AC 120V, 60Hz or AC 230V, 50 / 60Hz
|
