Model
|

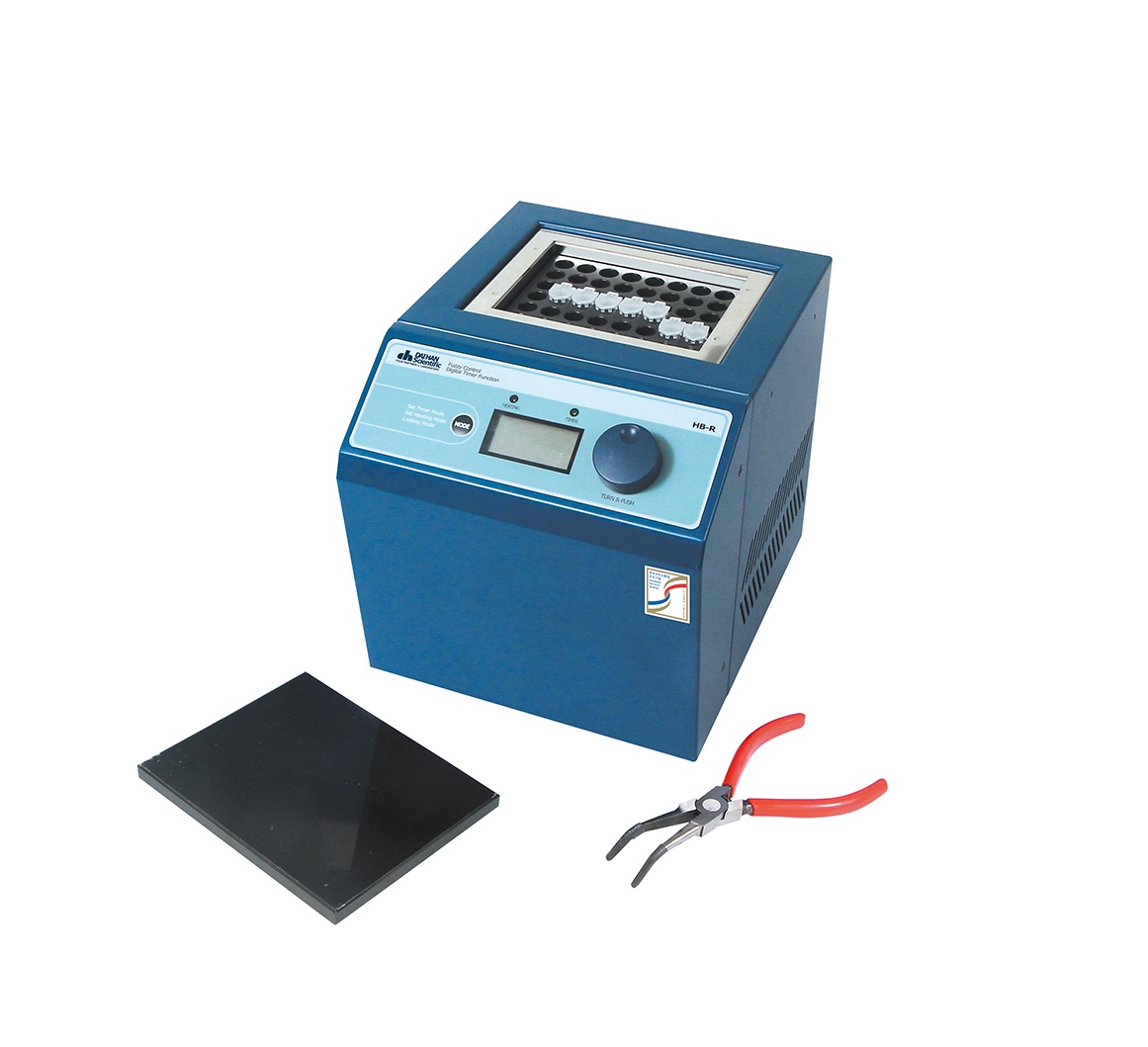

Heat/Cool Package-Set “HB - R48-Set”
|
|
Capacity (1.5 / 2ml Tube)
|
48 holes×1.5/ 2ml Centri. Tubes
|
|
Dimension : Unit & Block
|
185×230×h220mm, and 90×120×h60mm
|
|
Cooling
|
Two Peltier Modules
|
|
Cool-Down Speed
|
2.3℃/min. between 95℃ to 25℃, 0.5℃/min. between 25℃ to -5℃
|
|
Heater and Sensor
|
300W (Molded Heater), PT100
|
|
Temp. Range, & Accuracy
|
-5℃ to 95℃, and ±0.1℃ at 37℃, ±0.2℃ at 90℃
|
|
Heat-Up Speed
|
Approx. 5℃/min
|
|
Safety Device
|
Over Temp. and Over Current Protector, Sensor Error Detector
|
|
Timer with Alarm
|
99hr 59min, Alarm (Error Status and Timer - end)
|
|
Display
|
Digital LCD with Back-Light Function
|
|
Controller
|
Digital PID Controller
|
|
Material
|
Internal & External
|
Stainless steel (＃304), and Powder Coated steel
|
|
Block
|
Anodized Aluminum
|
|
Included Standard Acce.
|
Block “BLC548” for 1.5 / 2ml Tubes, and Block Tongs “BLE101”
|
|
Packing Size, Gross Weight
|
350×220×h310mm, 9 kg
|
|
Power Consumption
|
450 W
|
|
Power Supply & Cord Plug�
|
1 Phase, AC 120V, 60Hz or AC 230V, 50 / 60Hz
|
