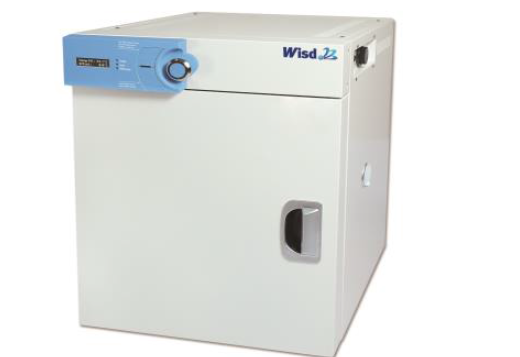

“ThermoStable ON” Model
|
Standard Model
|
|
ON-32
|
ON-50
|
ON-105
|
ON-155
|
|
Window Model
|
|
ON-W105
|
ON-W155
|
|
Capacity
|
32Lit
|
50Lit
|
105Lit
|
155Lit
|
|
Dimension
(w×d ×h)
|
Interior (mm)
|
310×290×360
|
370×350×420
|
485×409×535
|
550×474×600
|
|
Exterior (mm)
|
458×557×664
|
518×647×724
|
653×712×882
|
718×777×947
|
|
Heater Power
|
500 W
|
650 W
|
1.4 kW
|
1.6 kW
|
|
|
Range
|
Ambient Temperature +5℃ to 230℃
|
|
Fluctuation
|
± 0.5℃ at 100℃, ± 0.6℃ at 150℃
|
± 0.5℃ at 100℃,
± 0.8℃ at 150℃
|
|
Variation
|
± 1.2℃ at 100℃, ± 2.2℃ at 150℃
|
|
Sensor
|
PT 100
|
|
Control Resolution
|
±0.1℃
|
|
Heat-up Time
|
30 min. to 100 ℃,
43 min. to 150℃
|
30 min. to 100 ℃,
45 min. to 150℃
|
35 min. to 100 ℃,
50 min. to 150℃
|
|
Recovery Time (Door open 30sec)
|
8 min. to 100 ℃,
10 min. to 150℃
|
12 min. to 100 ℃,
10 min. to 150℃
|
|
Controller
|
Digital Fuzzy Control by Advanced Microprocessor Jog-Dial with Push Button
|
|
RS232 Port
|
Available to connect with PC
|
|
Display
|
Digital LCD with Back Light
|
|
Timer
|
99hr 59 min (delay/continuous function)
|
|
Material
|
Internal
|
Stainless steel (#304)
|
|
External
|
Powder Coated steel
|
|
Insulation
|
Glass Wool
|
|
Shelves
|
2ea of Stainless steel Wire Shelves included, Load per Shelf : 16 kg
|
|
Ventilation
|
Ventilation hole with Stainless steel Cap, Hole Diameter 40mm
|
|
1ea
|
2ea
|
|
Circulation
|
Gravity Convection Type
|
|
Safety device
|
Over Temp. and Over Current Protector, Sensor Error Detector
|
|
Others
|
UL/CUL Certified, CE Certified, GD-mark Storage Function (Temp. and Time) Locking Mode (Jog-Dial Input Disabled) Alarm (Error Status and Timer-end)
|
|
Net Weight (kg)
|
36
|
44
|
69
|
78
|
|
Packing Size (w×d×h) (mm)
|
562×664×747
|
622×754×807
|
743×819×1,068
|
808×884×1,133
|
|
Shipping Weight (kg)
|
43
|
59
|
79
|
92
|
|
Power Consumption
|
502 W
|
674 W
|
1390 W
|
1566 W
|
|
Energy Consumption, at 100°C
, at 150°C
|
90 Wh
|
117 Wh
|
187 Wh
|
204 Wh
|
|
181 Wh
|
230 Wh
|
337 Wh
|
398 Wh
|
|
Power Supply
|
1Phase 120V, 60Hz or 230V, 50/60Hz
|
