Model
|

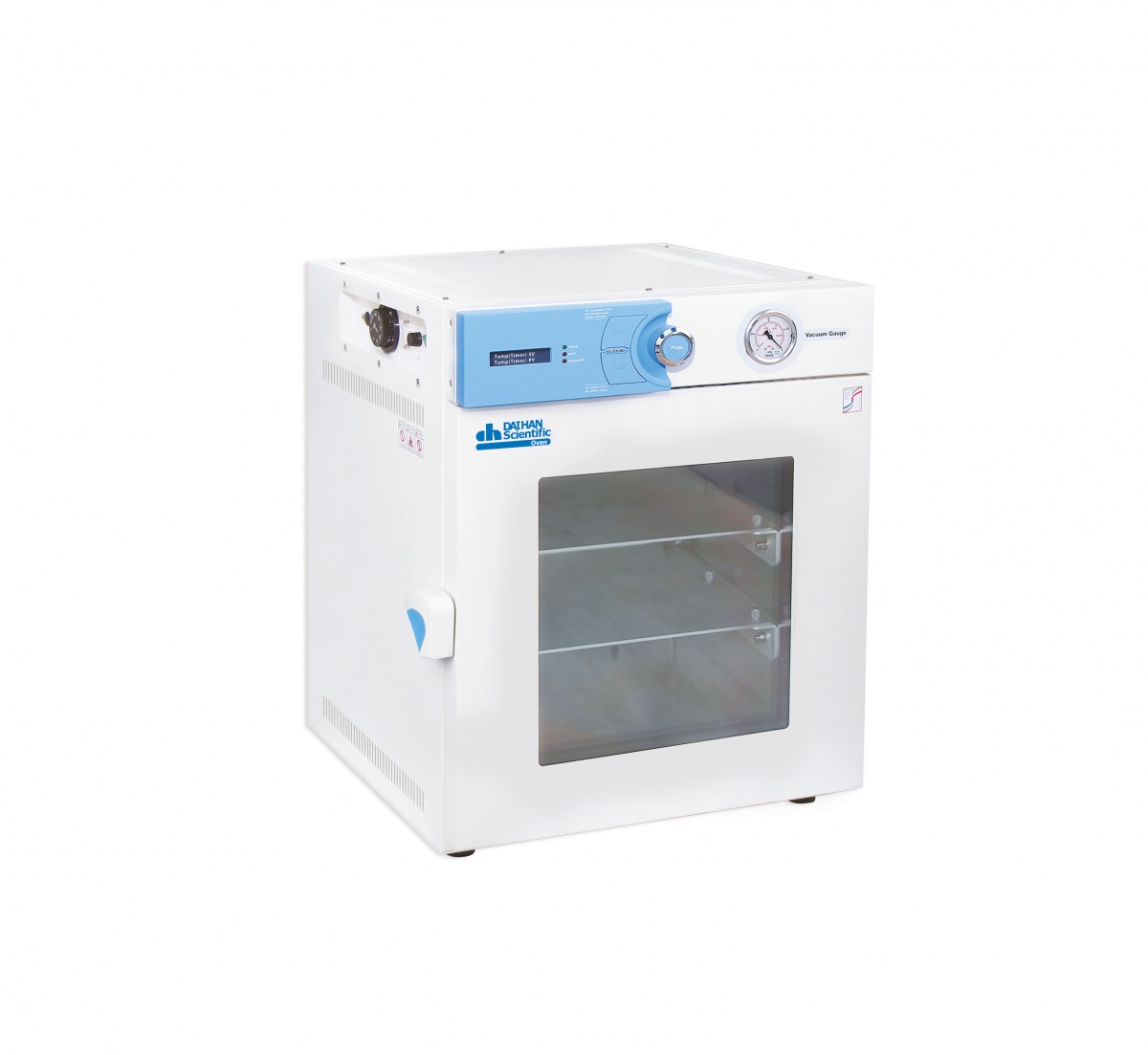

ThermoStable OV-20
|
ThermoStable OV-30
|
ThermoStable OV-70
|
|
Capacity
|
18.6 Lit.
|
30 Lit.
|
70 Lit.
|
|
Vacuum Range
|
10 ~ 750 mmHg
|
| |
Range / Sensor
|
Ambient +5℃ to 200℃ / PT100
|
|
Accu./ Uniformity
|
± 0.5℃ at 100℃ / ±2.0℃ at 100℃
|
|
Heating Power/Consumption
|
300W×2ea
|
300W×2ea
|
400W×4ea
|
|
Heat-up Time
|
50 min. to 100 ℃, 90 min. to 150 ℃
|
|
Timer & Alarm
|
99hr 59min (with delay / Continuous run.), Error status & Timer-end
|
|
Display
|
Digital LCD with Back Light
|
|
Controller
|
Digital Fuzzy Controller with Jog-Dial Switch (Turn & Push)
|
|
Resolution
|
Control : ±1.0℃, Display : ±1.0℃
|
|
Shelves
|
Included 2ea Aluminum Shelves
|
|
Safety Circuit
|
Over Temp. and Over Current Protector, Sensor Error Detector, Leakage Breaker
|
|
Material
|
Internal : Stainless steel (＃304), External : Powder Coated steel, Window : Tempered Safety Glass 12T, Poly Carbonate 5T for Safety
|
|
Others
|
Storage Function (Temp and Timer) Locking Mode (Jog-Dial Input Disabled)
|
|
Dimension
(w×d ×h)
|
Interior (mm)
|
265×290×265
|
300×330×300
|
400×435×400
|
|
Exterior (mm)
|
472×443×542
|
507×483×577
|
570×588×677
|
|
Vacuum Inlet Valve Size
|
od. 10 mm
|
|
Net Weight
|
48 kg
|
56 kg
|
82 kg
|
|
Packing Size (w×d×h) (mm) & Gross Weight
|
572×660×840
|
710×762×970
|
780×826×1,030
|
|
67 kg
|
76 kg
|
114 kg
|
|
Power Consumption
|
600 W
|
600 W
|
1.7 kW
|
|
Power Supply & Cord Plug�
|
1 Phase, AC 120V, 60Hz or AC 230V, 50 / 60Hz
|
