Model
|

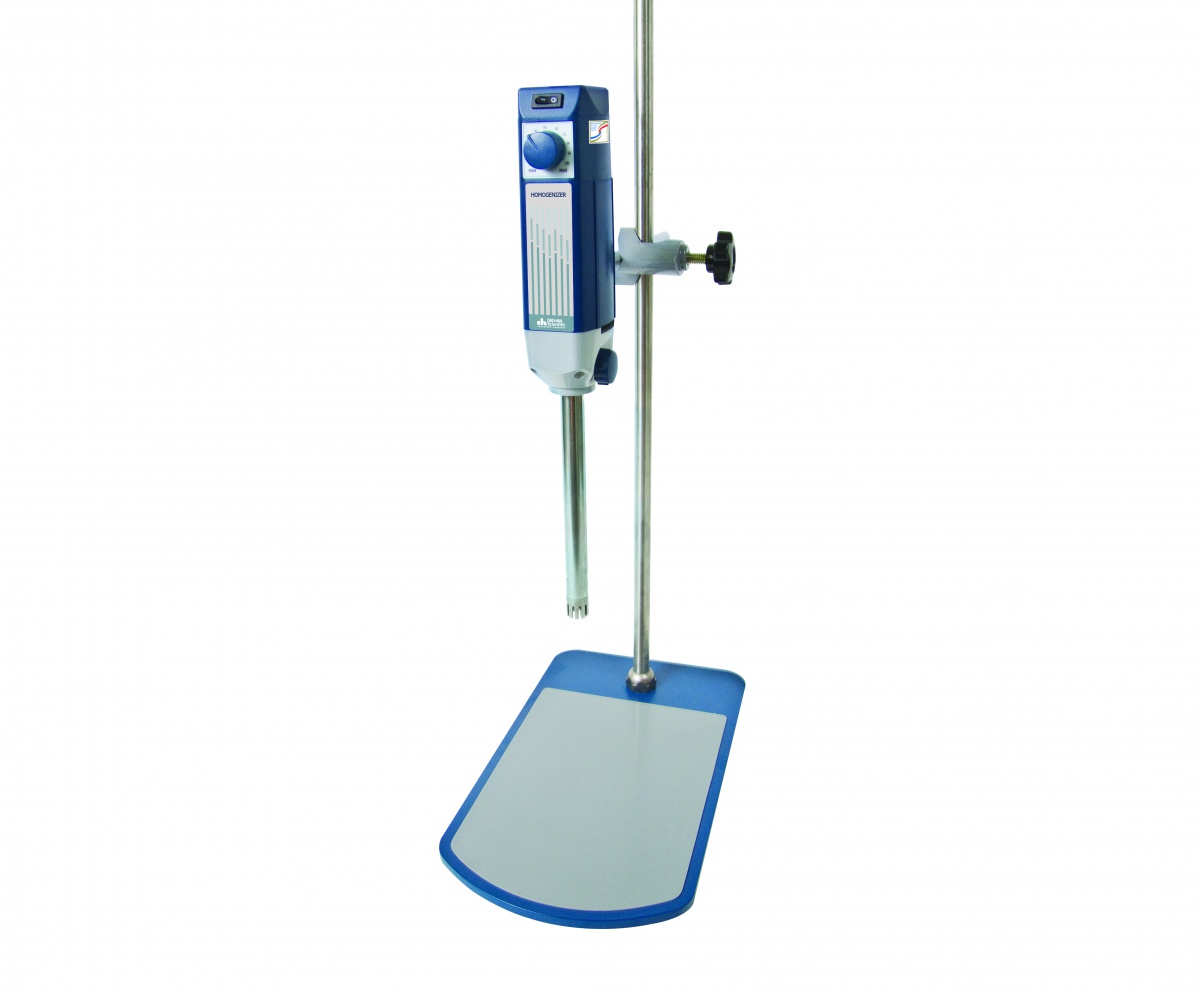

Homogenizer Package-Set “HG - 15A-Set”
|
|
Speed Range & Adjustment
|
Max. 27,000 rpm (without load), Stepless
|
|
Working Range
|
1 ~ 2,500ml
|
|
Motor Rating (Input / Output)
|
Input : 300W , Output : 160 W
|
|
Controller
|
Analog Phase Controller
|
|
Safety Device
|
Over Heat Protector
|
|
Usable Dispersing Tool
|
Φ8mm Stator “HT1008”, Φ10mm Stator “HT1010”,
Φ18mm Stator “HT1018”, Φ25mm Stator “HT1025”
|
|
Material
|
Aluminum Die-casting and ABS-Unit, Stainless steel (＃304)-Tool
|
|
Permissible Temp. & Moisture
|
Ambient +5 ~ 50℃, 85%
|
|
Extension Arm Size
|
Φ12.7×L250mm
|
|
Dimension & Weight
|
60×75×h215mm, 2.5kg
|
|
Packing Size & Gross Weight
|
320×300×h190mm, 5 kg
|
|
Power Consumption
|
160W
|
|
Power Supply & Cord Plug�
|
1 Phase, AC 120V, 60Hz or AC 230V, 50 / 60Hz
|
