Model
|

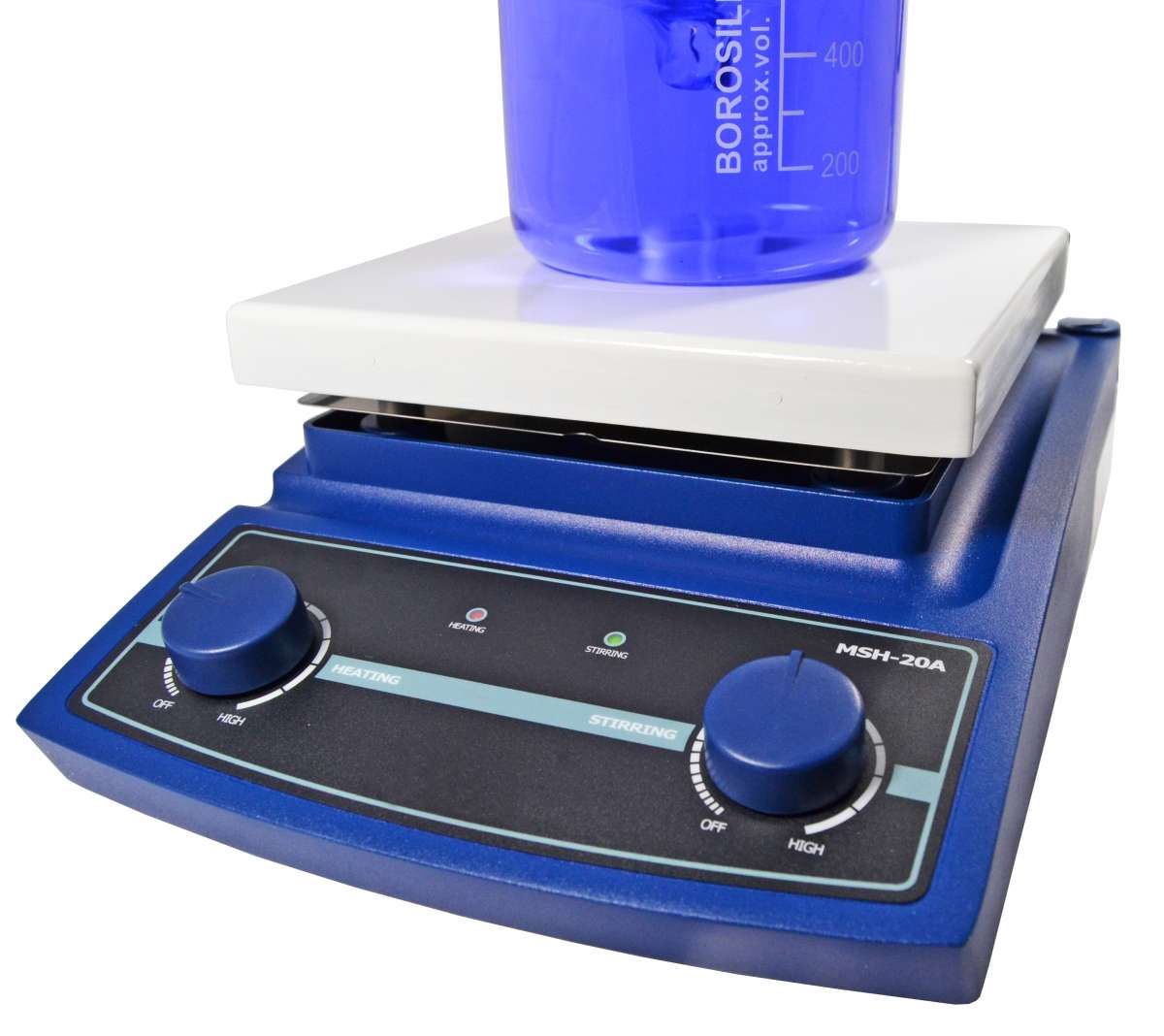

180×180mm Plate-type “MSH- 20A”
|
260×260mm Plate-type “MSH- 30A”
|
|
Material
|
Body
|
Powder Coated Aluminum
|
Powder Coated Steel
|
|
Plate
|
Ceramic Coated Aluminum (Chemical / Acid Resistance, Easy to Clean)
|
|
Stirring Capa. & Motor Rating
|
Max. 20 Lit., 9 / 4 W
|
|
Speed Range
|
Max. 1,500 rpm
|
|
Temp. Range
|
Max. 380℃
|
|
Temp. Uniformity
|
Specially Designed Heating Module : Temp. Difference 10% less
|
|
Heating Power/Consumption
|
600W
|
1.2 kW
|
|
Controller
|
Superior Linearity PWM Controller
|
|
Stirring Bar
|
3cm bar-included, Usable : up to 5cm bar
|
|
Permissible Temp. & RH %
|
Ambient +5 ~ 50℃, 85% RH
|
|
Dimension & Weight
|
206×307×h99mm, 2.8kg
|
286×387×h99mm, 3.3kg
|
|
Packing Size & Gross Weight
|
400×280×h200mm, 5 kg
|
430×320×h200mm, 5 kg
|
|
Power Supply & Cord/Plug*
|
1 Phase, AC 120 V, 60 Hz or AC 230 V, 50 / 60 Hz, with Cord/Plug
|
